Gofunow Patent T10 2G/3G/4G Multi Functions IOT Device China Manufacturer

Product Description

Product Attributes Packaging & Delivery

Product Attributes

Model No.: T10

Brand: GOFUNOW

Color: Black

Place Of Origin: Guangdong, China

Brand Name: Gofunow

Model Number: T10

Type: Other, scooter locks, IoT

Usage: Electric Scooters, Kick Scooters

Material: ABS and chips

Product Name: T10 IOT

IOT Device: 4G Double GPS module

Protocol: TCP & MQTT

Battery (Lithium Battery): 800MAH

Lights: Night Breath Light/Turning Lights

Voltage Fit: 25V to 60V

Display: Led

Function: Physical/ Battery Lock /USB Charging Phone

Main Material: ABS and chips

SIM Card Type: Nano Sim Card

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

20cm*20cm*10cm

Single gross weight

1kg

Package Type

Package Box

Picture Example

Lead Time

Quantity (Piece/Pieces)	1 ~ 10	>10
Est. Time (days)	15	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

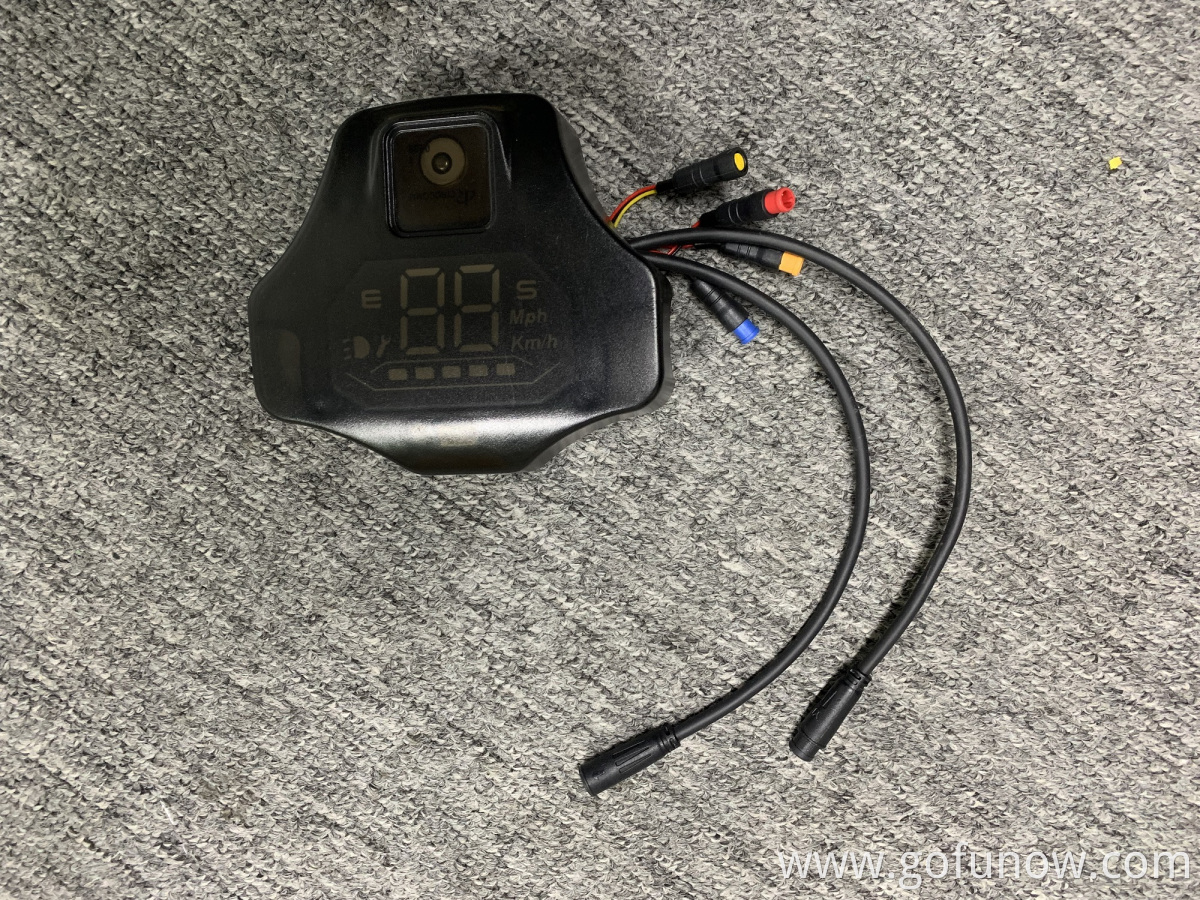

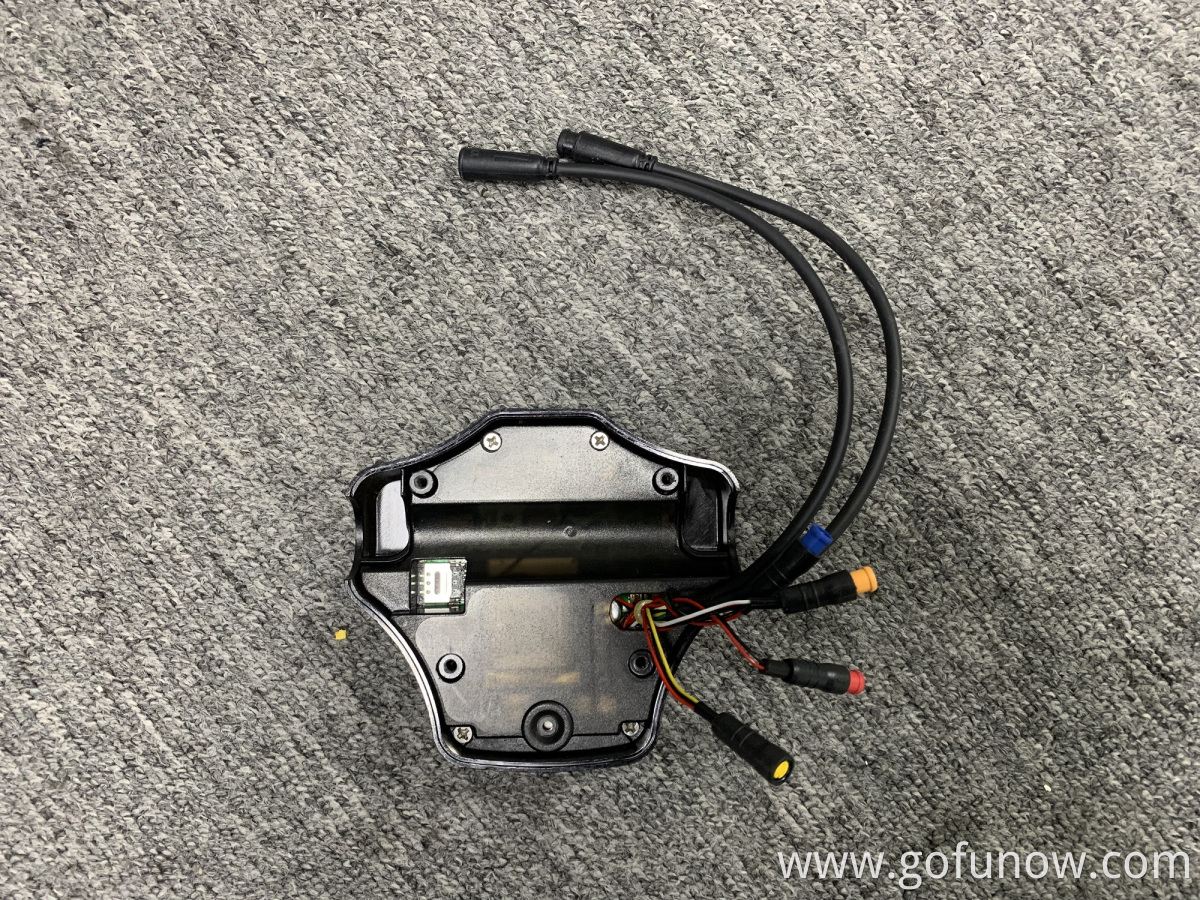

Gofunow IoT T10

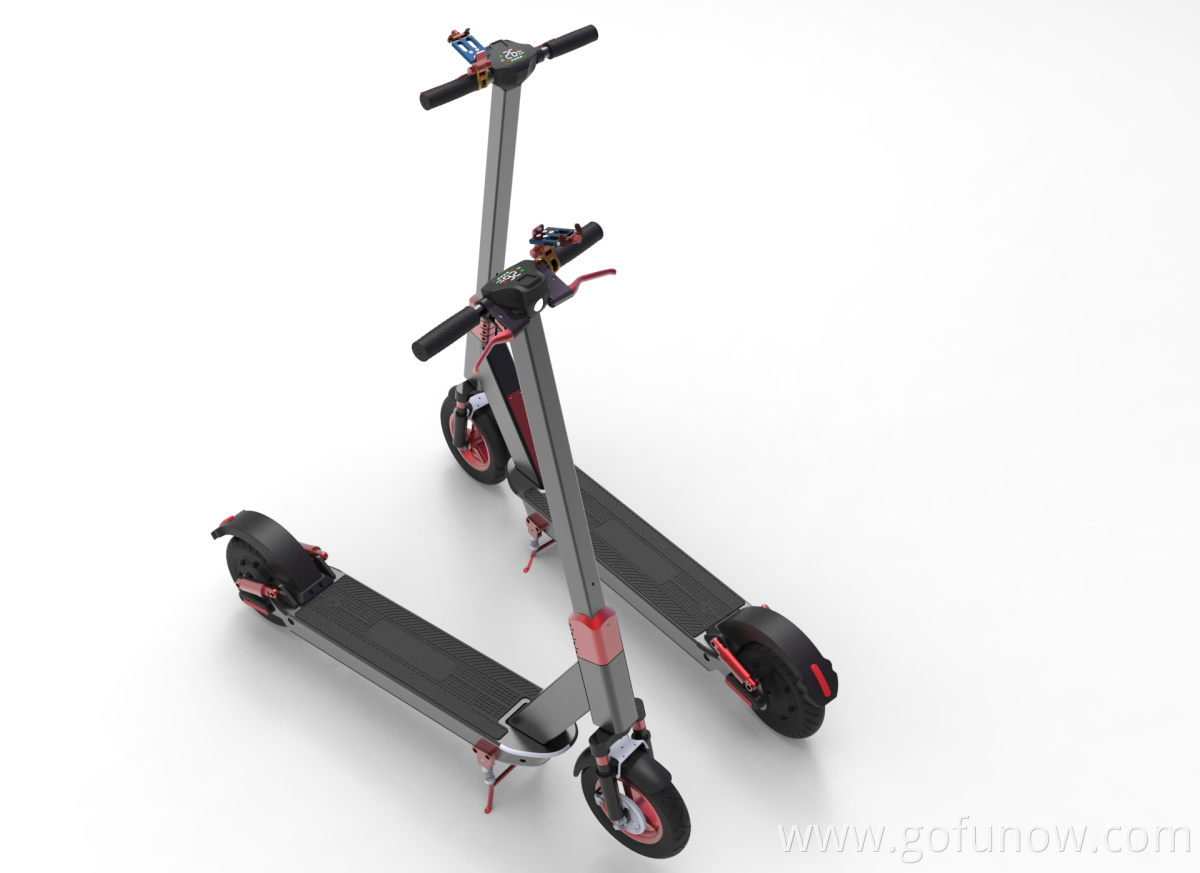

with the development and flourish of internet, IoT was applied in many aspects, the new concept and revolution in 21 century, so we had developed our own patent IoT that can apply in Foldable Electric Scooter，Electric Bicycle，Electric Bikes，Electric Scooters，folding electric scooter，electric moped，electric mountain bike，Motorized Scooter etc. which support advanced protocols, T10 collect data and share it through the internet, allowing for greater automation, remote monitoring, and control of systems and processes. IoT technology has the potential to revolutionize industries and improve everyday life with smart cities, homes, and transportation systems.

Products Description

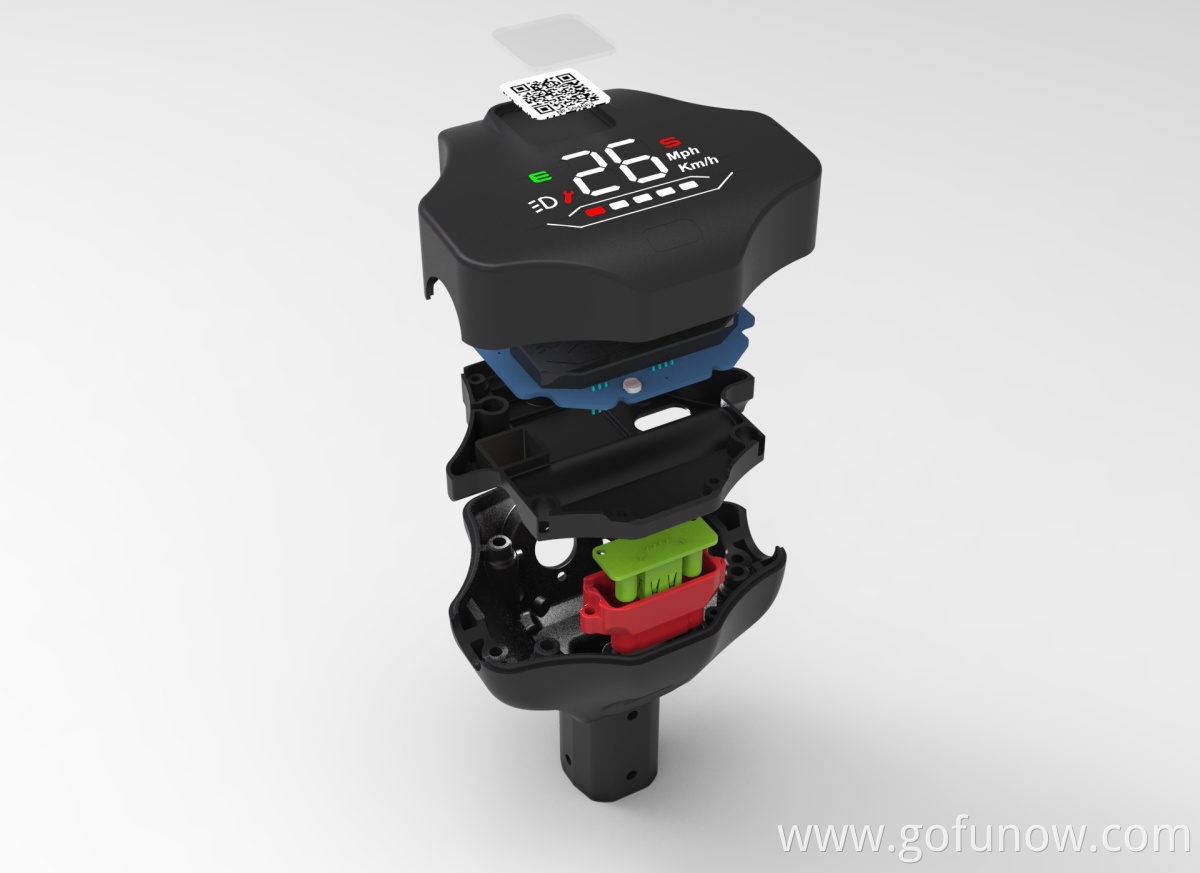

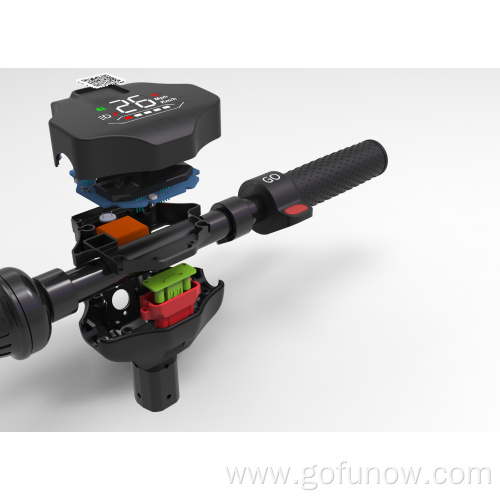

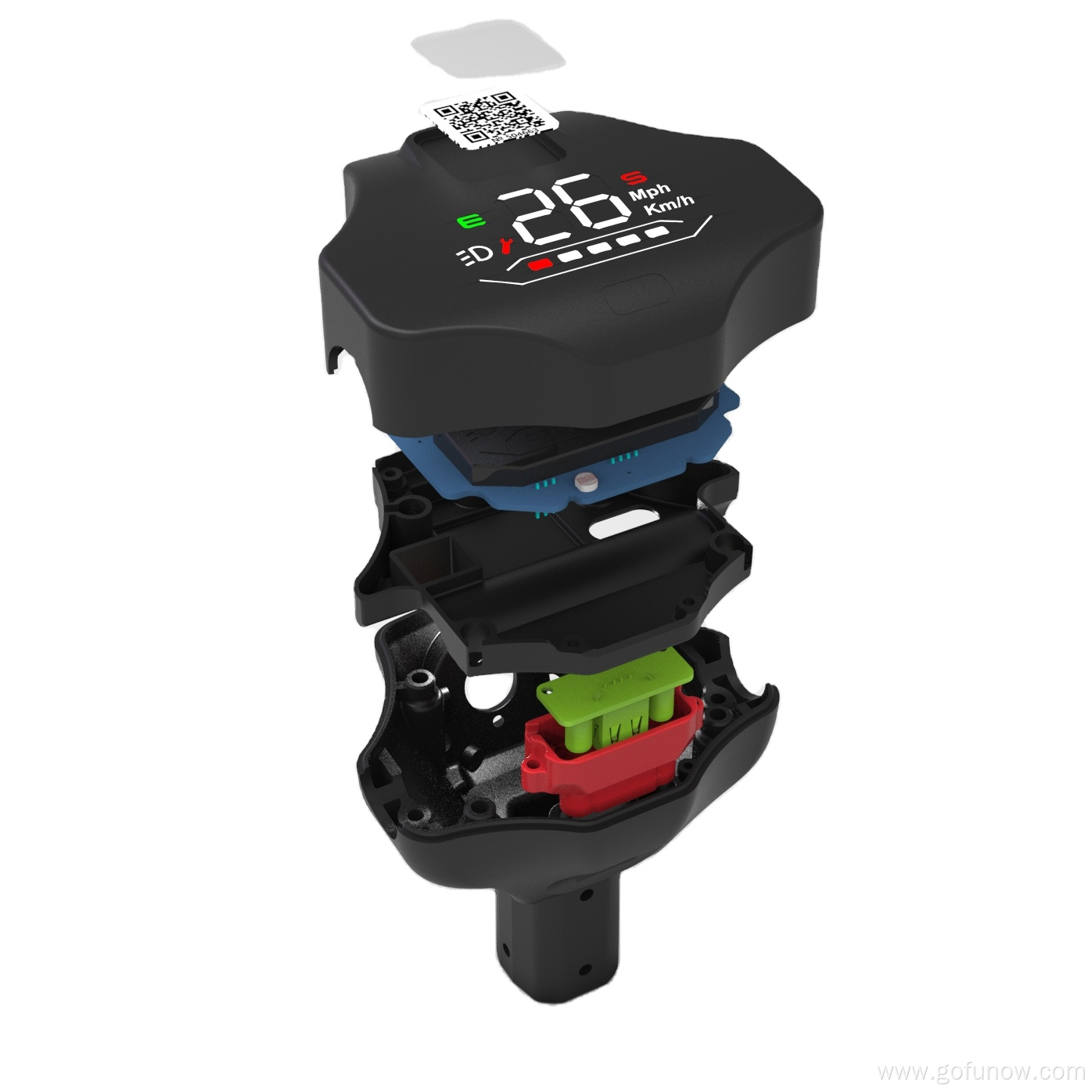

Structure Gofunow Patent IOT
IoT Model: T10
*QR acrylic board*QR code

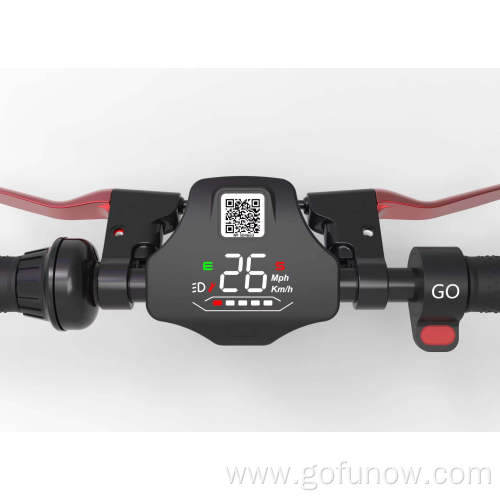

*IOT new display
*Touch screen
*Accurate GPS

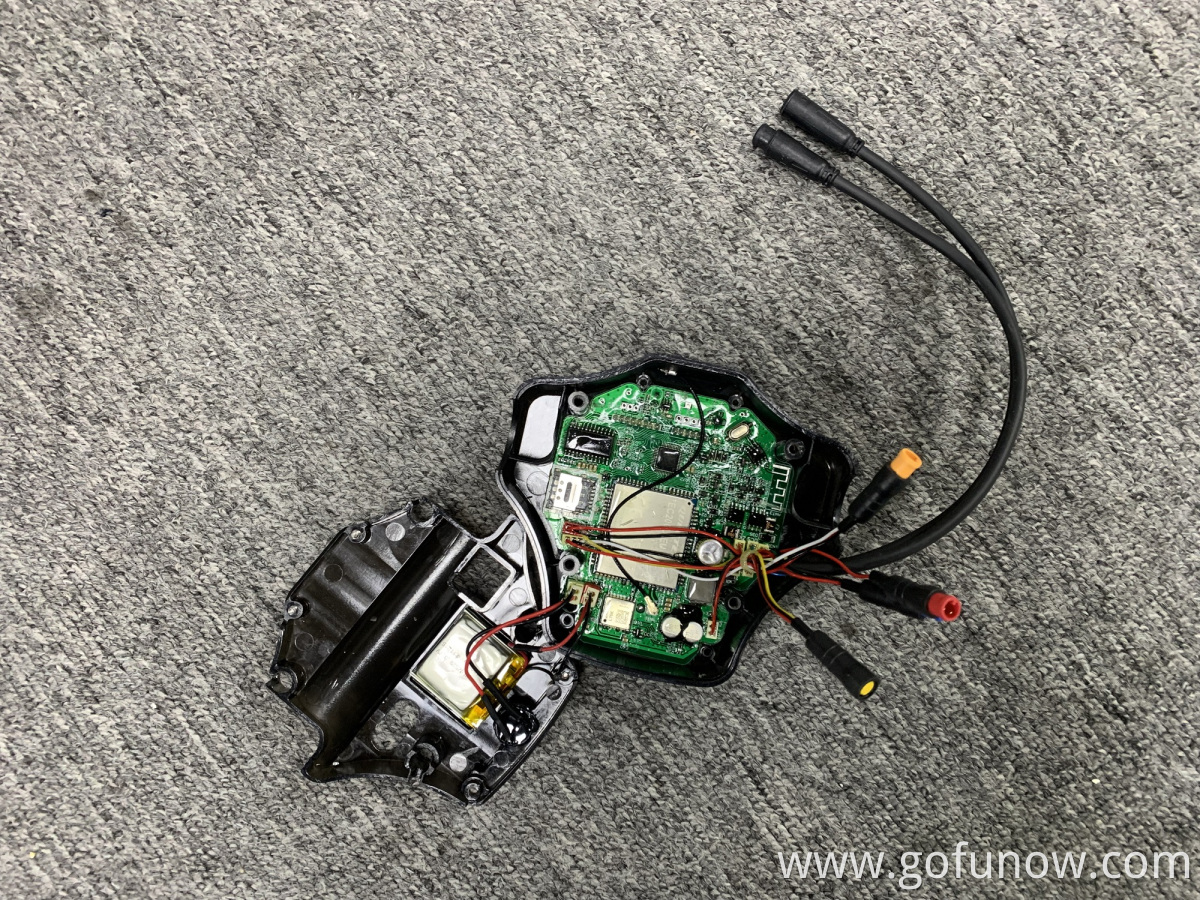

*IOT main board
*Night mood light
*Battery back up
*Internal head light
*USB phone charging
IoT Design Outline
Software part
* Implement 4 communication protocols* Scheduled restart Restart IOT , according to local time
* Enable hardware watchdog, OTA upgrade as well
* Factory production setup
Hardware part
* IOT has its own power supply, self check, self-detection
* IOT is powered directly by vehicle battery 25V to 60V* Each external interface of IOT has itself protection circuit
* LED display light panel to show power and system status

Functions: What could be done with IoT T10
Functions: What could be done with IoT T10
Protocol	TCP or MQTT(Reliable delivery of data)
Communication encryption	Anti-disassembly and anti-cracking Battery encryption Anti-theft

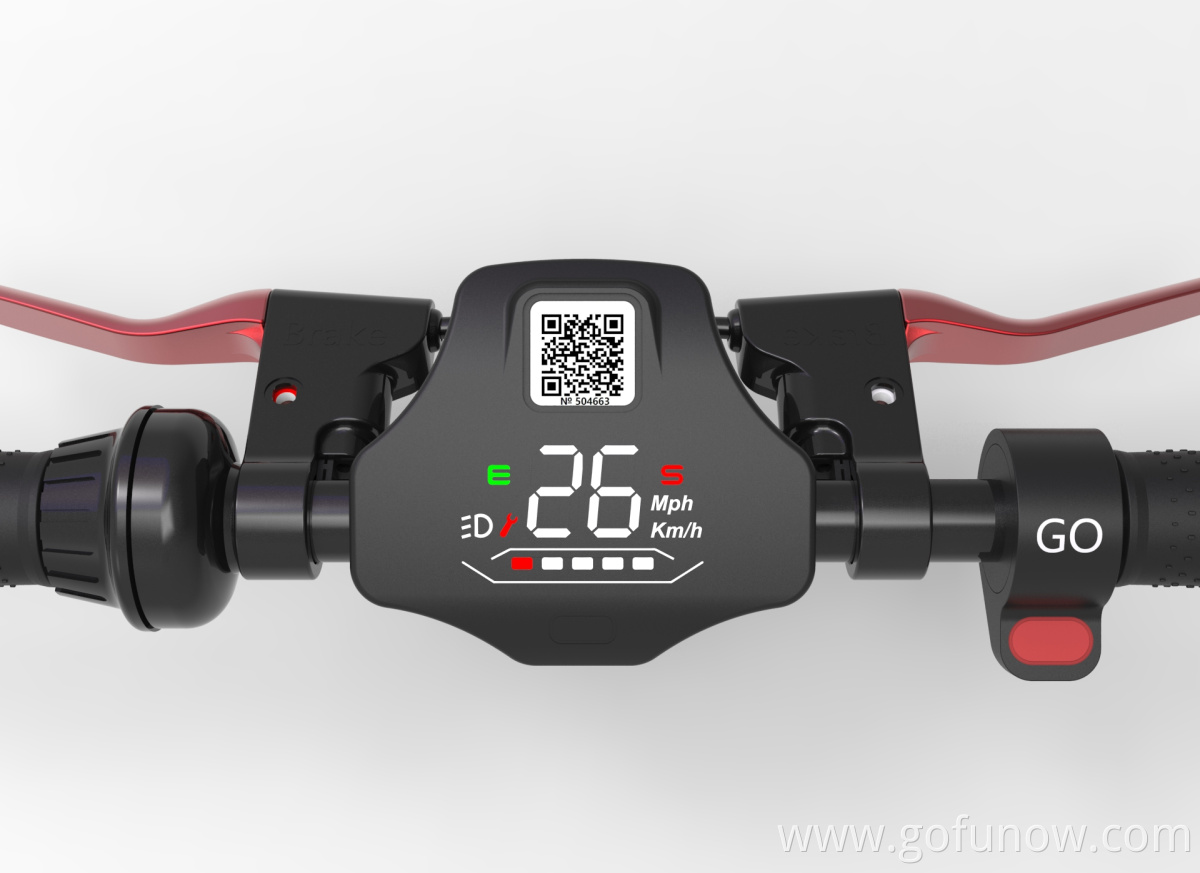

Display	Built-in digital tube to display speed, battery and other information
Touch screen	Built-in touch buttons, user can operate information such as light speed mode
Environmental info	Built-in temperature sensor and light sensor to collect environmental information and assist the automatic control of lighting system

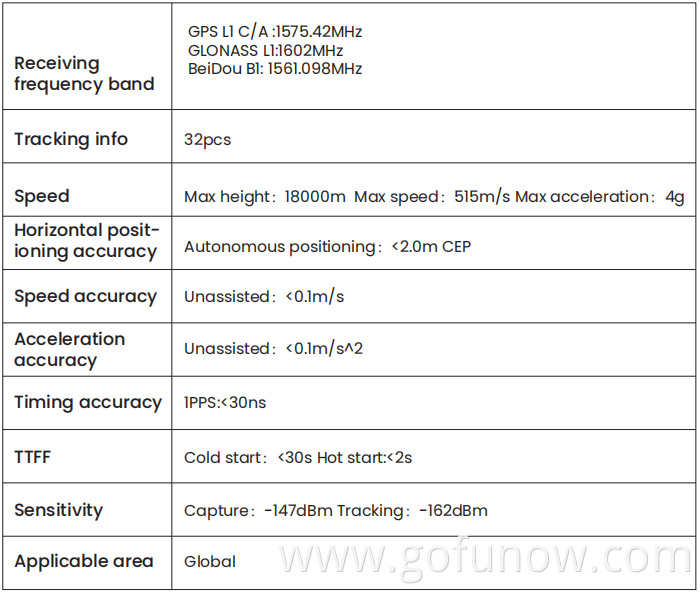

GPS	Dual-mode dual-frequency GPS system, the number of searchable satellites can reach 16, and the positioning accuracy of 0.8m can be achieved. See the GPS information map for details.
Lights	Self-contained lights/turning lights/daytime running lights/night mood lights can automatically run according to the environment, and can also be set remotely by the server
Fault self-check	The self-test system can detect faults such as accelerator sensor/power supply/controller/brake sensor, etc., and can display it on the man-machine interface and report the fault code to the server.
OTA upgrade	The OTA system can automatically upgrade the IOT/controller/battery BMS, etc.
Ambient lighting	The built-in ambient light can be arbitrarily set by the server with various lighting effects, including breathing mode, heartbeat mode, etc.

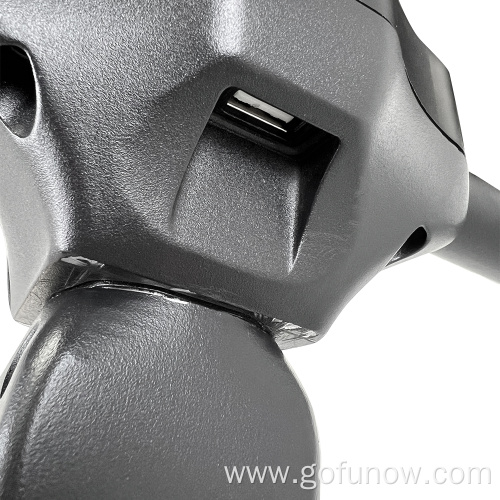

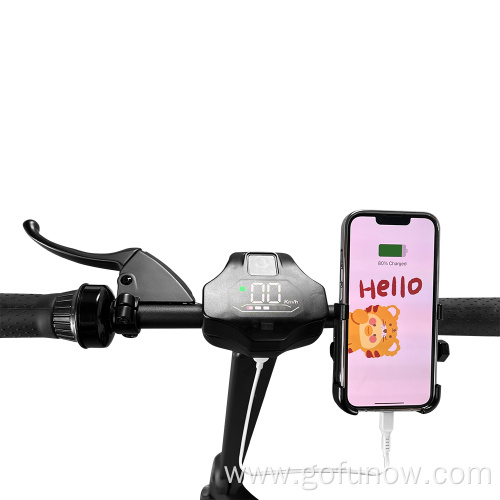

USB Charging	Built-in USB interface, which can charge external mobile phones and other devices, realize the function of sharing power bank (can be extended to wireless charging)
Self protection	Built-in 3-axis accelerometer to detect illegal movements, falls, violent dismantling and other events
